Gear tooth hardness has a major influence on wear behaviour, damage development and long-term
reliability of gearboxes. During inspections, distinct differences can be observed between hardened and softer gear teeth, especially when operating conditions deviate from the original design assumptions.
This insight outlines how tooth hardness affects common damage mechanisms, based on recurring observations during inspections
Background
Gear teeth are typically manufactured from alloyed steel and may be surface-hardened using processes such as carburising, nitriding or induction hardening. The purpose of hardening is to improve wear resistance and surface durability while maintaining sufficient core toughness.
Softer gear teeth, in contrast, have lower surface hardness and will deform more easily under load. While this reduces brittleness, it also increases susceptibility to wear and plastic deformation.
Observations from inspections
During
inspections, hardened and softer gear teeth often show fundamentally different damage patterns, even when operating under comparable loads.
Hardened gear teeth frequently exhibit surface-related damage such as pitting, micropitting or crack initiation within the hardened layer. Once the hardened layer is compromised, damage can propagate rapidly into the softer core material.
Softer gear teeth more commonly show plastic deformation, smearing or polishing wear. While these mechanisms may develop more gradually, they can still lead to loss of profile accuracy and increased dynamic loading.

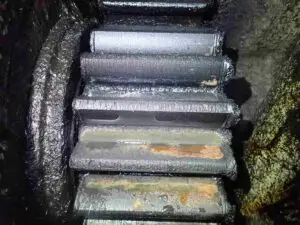

Softer gear tooth with visible plastic deformation and polishing wear. This behaviour is commonly associated with winch applications, where toughness and tolerance to shock loading are prioritised over surface hardness.

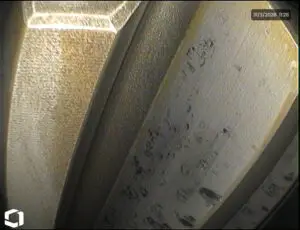

Hardened gear tooth showing local surface indentations. Such impressions are typically observed on hardened teeth operating under high contact stress, where damage remains confined to the surface layer rather than resulting in overall plastic deformation.
Failure mechanisms
Surface hardness increases resistance to adhesive and abrasive wear, but reduces the material’s ability to accommodate misalignment, overloads or poor lubrication conditions. Stress concentrations in hardened layers increase the risk of crack initiation, particularly under fluctuating loads.
Softer materials tolerate misalignment and shock loads more effectively, but generate higher friction and wear rates when lubrication conditions are insufficient. As a result, operating temperature and oil degradation may increase.
Key considerations
Based on inspection experience, several points are often underestimated:
– Hardened gear teeth are less forgiving under misalignment and localised contact.
– Surface damage on hardened teeth can propagate rapidly once initiated.
– Softer teeth may mask developing issues through gradual deformation.
– Lubrication quality strongly influences damage mechanisms in both cases.
Preventive measures
Effective prevention focuses less on choosing harder or softer teeth and more on controlling the conditions under which the gear operates.
Key measures include maintaining suitable lubrication quality, monitoring load fluctuations, ensuring proper alignment and performing regular inspections to detect early surface damage.
This insight is based on recurring patterns observed during gearbox inspections. Individual applications may require a more detailed assessment depending on operating conditions and load profiles.
